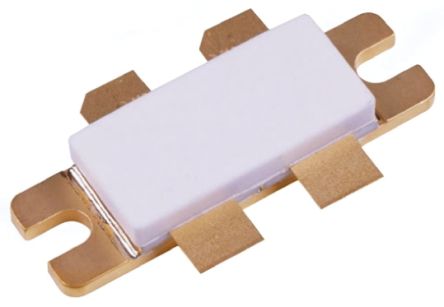

D1028UK Dual N-Channel MOSFET, 30 A, 70 V TetraFET, 5-Pin DR Semelab [D1028UK]; 738-7682
by Semelab
0₫
Mã kho: 7387682
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 30 A |
| Maximum Drain Source Voltage | 70 V |
| Package Type | DR |
| Mounting Type | Panel Mount |
| Pin Count | 5 |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 7V |
| Maximum Power Dissipation | 438 W |
| Transistor Configuration | Common Source |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 2 |
| Length | 34.03mm |
| Maximum Operating Temperature | +200 °C |
| Transistor Material | Si |
| Height | 5.08mm |
| Series | TetraFET |
| Width | 10.16mm |
