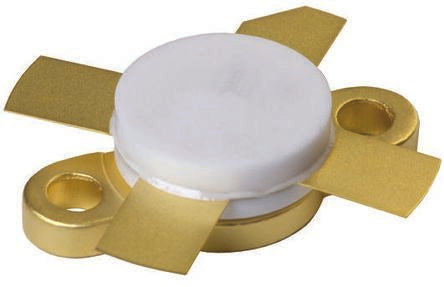

D1017UK N-Channel MOSFET, 30 A, 70 V TetraFET, 4-Pin DM Semelab [D1017UK]; 738-7685
by Semelab
0₫
Mã kho: 7387685
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 30 A |
| Maximum Drain Source Voltage | 70 V |
| Package Type | DM |
| Mounting Type | Panel Mount |
| Pin Count | 4 |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 7V |
| Maximum Power Dissipation | 220 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Maximum Operating Temperature | +200 °C |
| Height | 6.6mm |
| Series | TetraFET |
| Width | 6.35mm |
| Length | 24.76mm |
| Transistor Material | Si |
