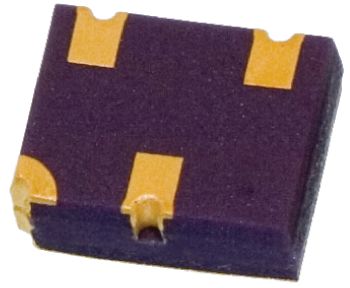

Semelab 2N2369ACSM NPN Transistor, 200 mA, 15 V, 3-Pin LCC 1 [2N2369ACSM]; 738-7581
by Semelab
0₫
Mã kho: 7387581
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 200 mA |
| Maximum Collector Emitter Voltage | 15 V |
| Package Type | LCC 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 360 mW |
| Minimum DC Current Gain | 40 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 40 V |
| Maximum Emitter Base Voltage | 4.5 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Width | 2.54mm |
| Height | 1.4mm |
| Length | 3.05mm |
| Maximum Operating Temperature | +200 °C |
| Maximum Collector Emitter Saturation Voltage | 0.5 V |
| Minimum Operating Temperature | -65 °C |
| Maximum Base Emitter Saturation Voltage | 1.6 V |
| Dimensions | 3.05 x 2.54 x 1.4mm |
