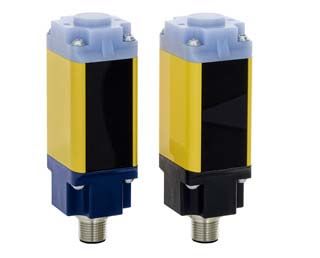

SLB440 Light Beam Receiver, 1 Beam, 15m Max Range [SLB440-R-1-ST]; 146-5819
by Schmersal
0₫
Mã kho: 1465819
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | SLB440 |
Component Type | Receiver |
Maximum Scanning Distance | 15m |
Minimum Scanning Distance | 300mm |
Safety Type | 4 |
PL EN ISO 13849-1 | PL e |
Number of Beams | 1 |
Peak Wavelength | 880nm |
Maximum Response Time | 22 ms |
Terminal Type | M12 Plug |
Dimensions | 33 x 27.8 x 91 mm |
Diameter | M12 |
Application | Body |
Length | 33mm |
Height | 91mm |
Width | 27.8mm |
Features | Automatic Start or Restart Interlock, Compact Design with Integral Evaluation, Height Range 75 m (Reserve up to 90 m), Safe OSSD Outputs to Ple, Set-up Tool & Diagnostic Indication, Sturdy Metal Enclosure with M12 Connector or Cable, Version with Heater for Outdoor Applications Down to –30°C |
