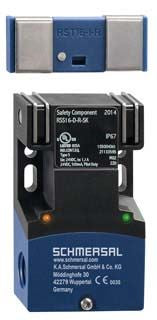

RSS16 RFID Safety Switch, Glass Fibre Reinforced Thermoplastic, 26.4 V dc [RSS16-I2-D-R-SK]; 146-5811
by Schmersal
0₫
Mã kho: 1465811
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Supply Voltage | 26.4 V dc |
Housing Material | Glass Fibre Reinforced Thermoplastic |
Connection Type | Screw |
Switch Type | Rectangular |
Terminal Type | M16 gland |
Series | RSS16 |
Switching Distance | 12 (On) mm, 15 mm, 30 (Off) mm |
IP Rating | IP65, IP67 |
Supply Current | 2.1 A |
Actuator Included | Yes |
Housing Colour | Black, Blue |
Safety Category | BIS 4 |
Standards Met | CE, CULus, EAC, TUV |
Actuator Type | Flat |
Depth | 30mm |
Width | 52mm |
Sensor Principle | RFID |
Length | 91mm |
Dimensions | 91 x 52 x 30 mm |
