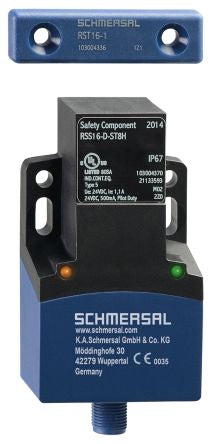

RSS 16 RFID Safety Switch, Glass Fibre Reinforced Thermoplastic, Plastic, 20.4 → 26.4 V dc [RSS16-D-ST8H]; 880-1870
by Schmersal
0₫
Mã kho: 8801870
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 20.4 → 26.4 V dc |
| Housing Material | Glass Fibre Reinforced Thermoplastic, Plastic |
| Connection Type | M12 |
| Switch Type | Rectangular |
| Terminal Type | 8-Pin M12 Connector |
| Series | RSS 16 |
| Switching Distance | 12 (On) mm, 15 mm, 30 (Off) mm |
| IP Rating | IP65, IP67 |
| Supply Current | 2.1 A |
| Actuator Included | No |
| Number of Approach Directions | 3 |
| Housing Colour | Black, Blue |
| Dimensions | 91 x 52 x 30 mm |
| Standards Met | CE Listed, CULus Listed, EN 62061, EN ISO 13849-1, IEC 60947-5-3, IEC 61508, TUV |
| Depth | 30mm |
| Length | 91mm |
| Actuator Type | Coded |
| Sensor Principle | RFID |
| Safety Category | Bis 4, Category 3 |
| Width | 52mm |
