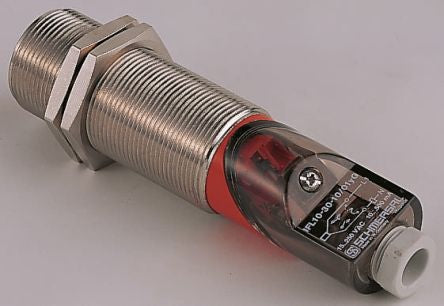

Schmersal, M30 x 1.5, NO/NC Inductive Sensor 118mm Length, 250 V ac supply voltage , IP67 Rating [IFL 15-30-10/01]; 470-6156
by Schmersal
0₫
Mã kho: 4706156
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Body Style | Barrel |
| Thread Size | M30 x 1.5 |
| Output Type | NO/NC |
| Detection Range | 15 mm |
| Terminal Type | M16 Gland |
| Supply Voltage | 250 V ac |
| Length | 118mm |
| Maximum AC Voltage | 250V |
| Mounting Type | Non Flush |
| IP Rating | IP67 |
| Switching Current | 500 mA |
| Housing Material | Brass |
| Maximum Operating Temperature | +70°C |
| Maximum Switching Frequency | 10Hz |
| Minimum Operating Temperature | -25°C |
