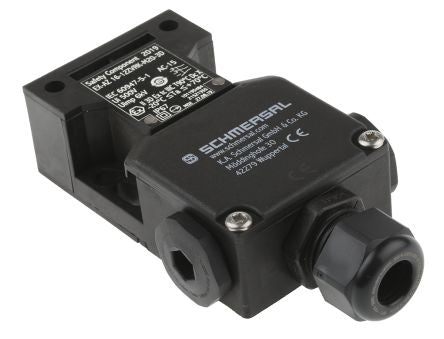

ATEX EX-AZ16 Safety Interlock Switch, Fibreglass, 2NC/1NO [EX-AZ16-12ZVRK-M20-3D]; 698-8723
by Schmersal
0₫
Mã kho: 6988723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Type | Screw |
| Lock Style | Key |
| Normal State Configuration | 2NC/1NO |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| Maximum AC Voltage | 230V |
| Maximum DC Voltage | 24V |
| Safety Contacts | 2NC |
| Number of Head Directions | 3 |
| Series | EX-AZ16 |
| Auxiliary Contacts | 1NO |
| Dimensions | 90 x 52 x 30 mm |
| Maximum Current | 2.5 A |
| Minimum Operating Temperature | -20°C |
| IP Rating | IP67 |
| Maximum Operating Temperature | +70°C |
| Hazardous Area Certification | ATEX |
| Width | 52mm |
| Length | 90mm |
| Depth | 30mm |
