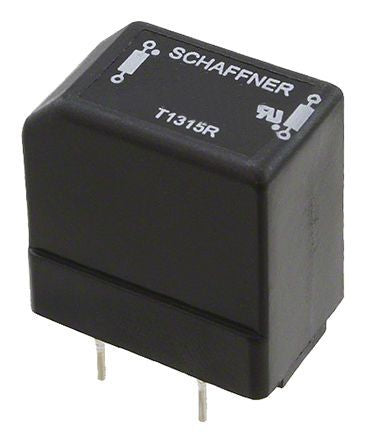

Schaffner 15 μH Leaded Inductor, Max SRF:13MHz, 4A Idc, 30mΩ Rdc RS [RS622-4-02]; 219-3205
by Schaffner
0₫
Mã kho: 2193205
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 15 μH |
| Maximum DC Current | 4A |
| Mounting Type | Radial |
| Maximum DC Resistance | 30mΩ |
| Length | 31.3mm |
| Depth | 18.3mm |
| Height | 29.6mm |
| Dimensions | 31.3 x 18.3 x 29.6mm |
| Maximum Self Resonant Frequency | 13MHz |
| Lead Pitch | 12.5mm |
| Series | RS |
| Maximum Operating Temperature | +125°C |
| Terminal Type | PC Pin |
| Minimum Operating Temperature | -40°C |
