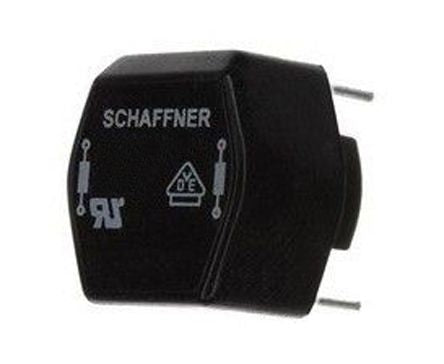

Schaffner 10 (Dual Load) μH, 40 (Dual Load) μH Common Mode Choke, Max SRF:18 (Single Load) MHz, 22 (Dual Load) MHz [RS514-4-02]; 883-7780
by Schaffner
0₫
Mã kho: 8837780
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 10 (Dual Load) μH, 40 (Dual Load) μH |
| Maximum DC Current | 4A |
| Mounting Type | Radial |
| Maximum DC Resistance | 20 (Dual Load) mΩ, 40 (Single Load) mΩ |
| Length | 21.5mm |
| Depth | 22.5mm |
| Height | 13.2mm |
| Dimensions | 21.5 x 22.5 x 13.2mm |
| Maximum Self Resonant Frequency | 18 (Single Load) MHz, 22 (Dual Load) MHz |
| Lead Pitch | 20.1mm |
| Series | RS |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
| Lead Diameter | 0.8mm |
| Terminal Type | Radial Leaded |
