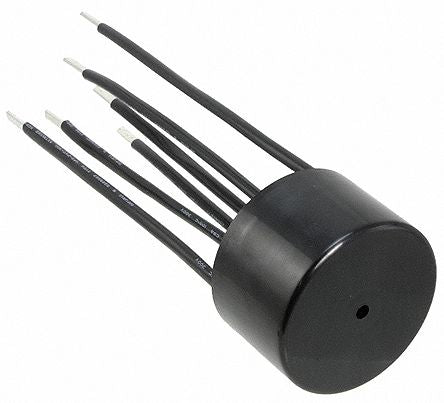

Schaffner 12 mH -30 → +50% Common Mode Choke, 6A Idc, 60.6mΩ Rdc RD [RD7137-6-12M0]; 883-9165
by Schaffner
0₫
Mã kho: 8839165
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 12 mH |
| Maximum DC Current | 6A |
| Mounting Type | Lead Wire, Through Hole |
| Maximum DC Resistance | 60.6mΩ |
| Tolerance | -30 → +50% |
| Diameter | 70mm |
| Height | 40mm |
| Dimensions | 70 (Dia.) x 40mm |
| Series | RD |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +110°C |
| Lead Diameter | 1mm |
| Terminal Type | Radial Leaded |
