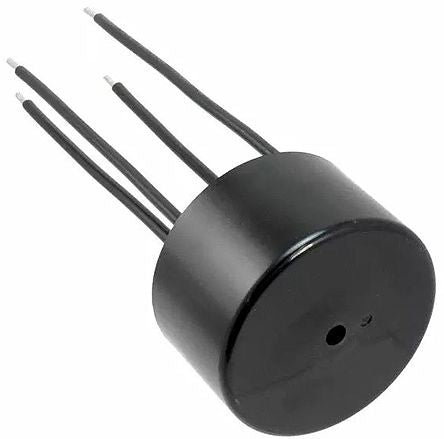

Schaffner 25 mH -30 → +50% Current Compensated Choke, 6A Idc, 84.2mΩ Rdc RD [RD7127-6-25M0]; 465-6203
by Schaffner
0₫
Mã kho: 4656203
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 25 mH |
| Maximum DC Current | 6A |
| Mounting Type | Lead Wire |
| Maximum DC Resistance | 84.2mΩ |
| Tolerance | -30 → +50% |
| Diameter | 70.5mm |
| Height | 40.5mm |
| Dimensions | 70.5 (Dia.) x 40.5mm |
| Series | RD |
| Terminal Type | Wire |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +110°C |
