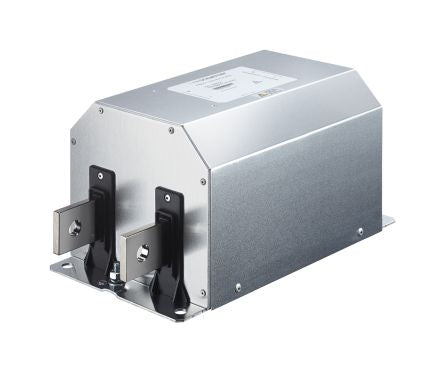

Schaffner FN2211 Series 400A 1000 V dc Panel Mount Power Line Filter, with Busbar Terminals, Single Phase [FN2211-400-99-C30-R55]; 146-3449
by Schaffner
0₫
Mã kho: 1463449
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 400A |
| Maximum Voltage Rating | 1000 V dc |
| Mounting Type | Panel Mount |
| Termination Style | Busbar |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | FN2211 |
| Length | 235mm |
| Depth | 175mm |
| Height | 150mm |
| Dimensions | 235 x 175 x 150mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +100°C |
| Power Loss | 24W |
