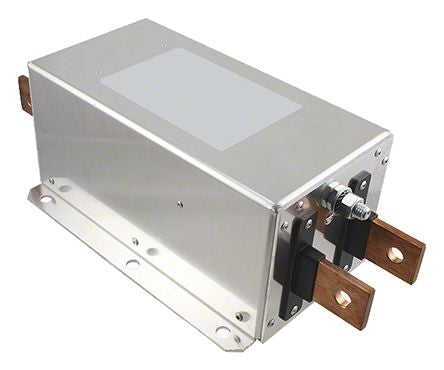

Schaffner FN2070 Series 3A 110 V ac, 250 V ac DC to 400Hz Chassis Mount RFI Filter, with Tab Terminals, Single Phase [FN2070A-3-06]; 881-2160
by Schaffner
0₫
Mã kho: 8812160
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 110 V ac, 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Tab |
| Number of Phases | 1 |
| Number of Stages | Two Stage |
| Series | FN2070 |
| Operating Frequency | DC to 400Hz |
| Length | 85mm |
| Depth | 54mm |
| Height | 40.3mm |
| Capacitance | 470 nF, 470 pF |
| Dimensions | 85 x 54 x 40.3mm |
| Inductance | 9.8 mH |
| Leakage Current | 0.074 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 470kΩ |
