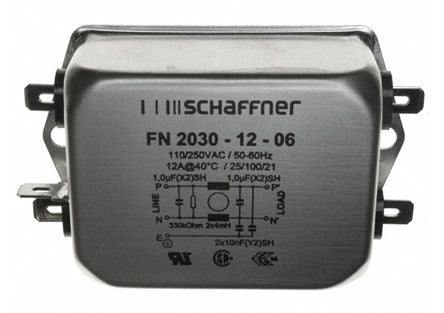

Schaffner FN2030 Series 12A 250 V ac 400Hz Flange Mount RFI Filter, with Tab Terminals [FN2030-12-06]; 170-4914
by Schaffner
0₫
Mã kho: 1704914
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 12A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Tab |
| Series | FN2030 |
| Number of Stages | Single Stage |
| Operating Frequency | 400Hz |
| Length | 85mm |
| Depth | 54mm |
| Capacitance | 1 μF, 10 nF |
| Height | 30.3mm |
| Dimensions | 85 x 54 x 30.3mm |
| Inductance | 4 mH |
| Leakage Current | 0.87 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 330kΩ |
