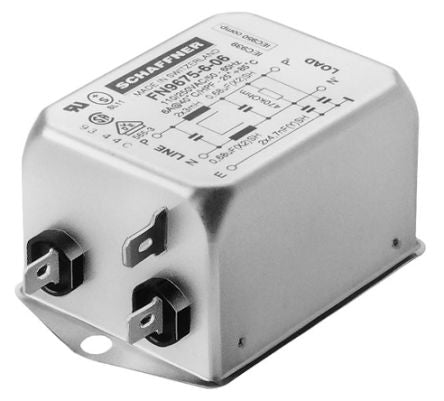

Schaffner FN9675 Series 6A 250 V ac 400Hz Chassis Mount Power Line Filter, with Screw Terminals [FN 9675-6-06]; 170-4975
by Schaffner
0₫
Mã kho: 1704975
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Current Rating | 6A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Series | FN9675 |
| Number of Stages | Single Stage |
| Operating Frequency | 400Hz |
| Length | 54mm |
| Depth | 85mm |
| Height | 40.3mm |
| Capacitance | 4.7 nF, 680 nF |
| Inductance | 18 mH |
| Dimensions | 54 x 85 x 40.3mm |
| Leakage Current | 0.41 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 470kΩ |
