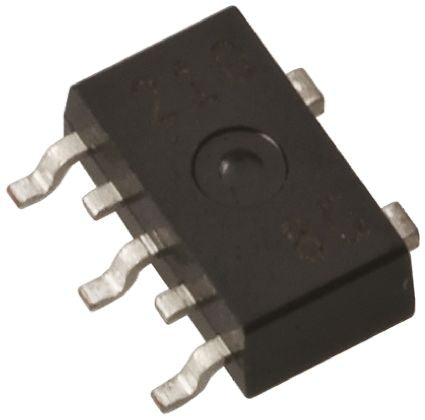

Sanyo FP203-TL-E Dual NPN + PNP Bipolar Transistor, 1 A, 50 / -50 V, 7-Pin PCP 5 [FP203-TL-E]; 663-9017
by Sanyo
0₫
Mã kho: 6639017
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum DC Collector Current | 0.0416666666666667 |
| Maximum Collector Emitter Voltage | 50 / -50 V |
| Package Type | PCP 5 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1 W |
| Minimum DC Current Gain | 140 |
| Maximum Collector Base Voltage | -60 V, 60 V |
| Maximum Emitter Base Voltage | -5 (PNP) V, 5 (NPN) V |
| Maximum Operating Frequency | 150 MHz |
| Pin Count | 7 |
| Number of Elements per Chip | 2 |
| Width | 2.5mm |
| Length | 4.5mm |
| Dimensions | 4.5 x 2.5 x 1.5mm |
| Maximum Base Emitter Saturation Voltage | -1.2 (PNP) V, 1.2 (NPN) V |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Saturation Voltage | -0.4 (PNP) V, 0.25 (NPN) V |
| Height | 1.5mm |
