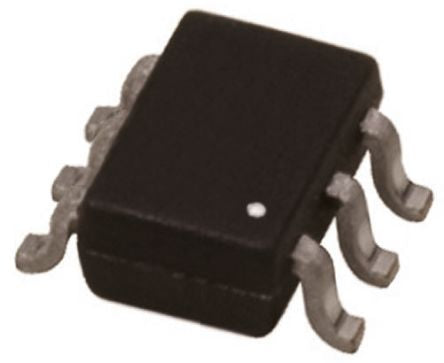

CPH6605-TL-E Dual N/P-Channel MOSFET Transistor, 1.5 A, 650 mA, 20 V, 30 V, 6-Pin CPH Sanyo [CPH6605-TL-E]; 664-0402
by Sanyo
0₫
Mã kho: 6640402
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N, P |
| Maximum Continuous Drain Current | 1.5 A, 650 mA |
| Maximum Drain Source Voltage | 20 V, 30 V |
| Package Type | CPH |
| Mounting Type | Surface Mount |
| Pin Count | 6 |
| Maximum Drain Source Resistance | 5.2 Ω, 340 mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation | 800 mW |
| Maximum Gate Source Voltage | -10 V, +10 V |
| Number of Elements per Chip | 2 |
| Length | 2.9mm |
| Maximum Operating Temperature | +150 °C |
| Height | 0.9mm |
| Width | 1.6mm |
| Typical Gate Charge @ Vgs | 2.34 nC @ 10 V, 3.2 nC @ 10 V |
