![Samtec TSW-112-08-L-S-RA 7671072](http://nguyenxuong.com/cdn/shop/products/R7671072-01_444x174.jpg?v=1594148712)

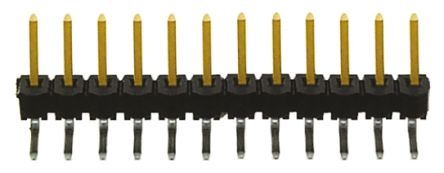

Samtec, TSW, 12 Way, 1 Row, Right Angle Pin Header [TSW-112-08-L-S-RA]; 767-1072
by Samtec
0₫
Mã kho: 7671072
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | TSW |
Pitch | 2.54mm |
Number of Contacts | 12 |
Number of Rows | 1 |
Body Orientation | Right Angle |
Shrouded/Unshrouded | Unshrouded |
Mounting Type | Through Hole |
Connector System | Board to Board, Wire to Board |
Termination Method | Solder |
Contact Plating | Gold |
Contact Material | Phosphor Bronze |
Current Rating | 7.6A |
