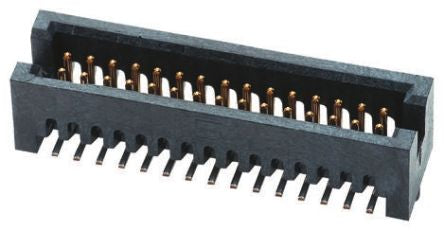

Samtec, Tiger Eye TFM, 40 Way, 2 Row, Straight PCB Header [TFM-120-02-S-D-A]; 507-7364
by Samtec
0₫
Mã kho: 5077364
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | Tiger Eye TFM |
| Pitch | 1.27mm |
| Number of Contacts | 40 |
| Number of Rows | 2 |
| Body Orientation | Straight |
| Shrouded/Unshrouded | Shrouded |
| Mounting Type | Surface Mount |
| Connector System | Board to Board, Wire to Board |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 2A |
