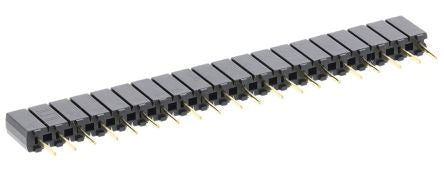

Samtec SSA Series 2.54mm Pitch 20 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination [SSA-120-S-G]; 767-9820
by Samtec
0₫
Mã kho: 7679820
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 20 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Type | Board to Board |
| Mounting Type | Through Hole |
| Body Orientation | Straight |
| Termination Method | Solder |
| Current Rating | 1A |
| Voltage Rating | 1 kV ac |
| Series | SSA |
| Contact Material | Phosphor Bronze |
