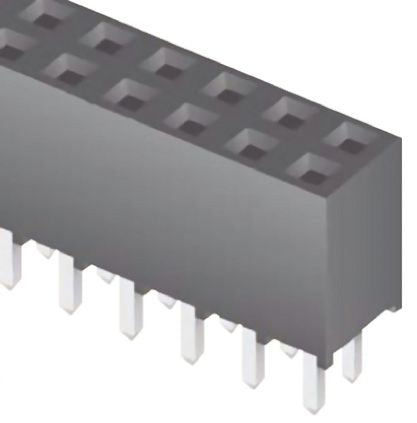

Samtec SQT Series 2mm Pitch 30 Way 2 Row Straight PCB Socket, Through Hole, Solder Termination [SQT-115-01-L-D]; 767-9631
by Samtec
0₫
Mã kho: 7679631
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 30 |
Number of Rows | 2 |
Pitch | 2mm |
Type | Board to Board |
Mounting Type | Through Hole |
Body Orientation | Straight |
Termination Method | Solder |
Current Rating | 5.5A |
Voltage Rating | 450 V ac |
Series | SQT |
Contact Material | Phosphor Bronze |
