![Samtec SMA-J-P-H-ST-EM1 1585721](http://nguyenxuong.com/cdn/shop/products/R1585721-01_444x333.jpg?v=1594191465)

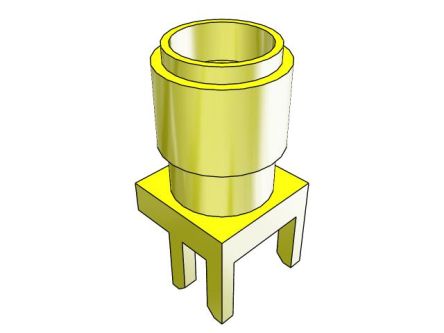

Samtec Straight 50Ω Edge Mount SMA Jack, Solder Termination [SMA-J-P-H-ST-EM1]; 158-5721
by Samtec
0₫
Mã kho: 1585721
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Gender | Female |
Coaxial Connector Type | SMA Connector |
Mounting Type | Edge Mount |
Impedance | 50Ω |
Termination Method | Solder |
Body Orientation | Straight |
Size | Standard |
Bulkhead | No |
Operating Frequency | 0 → 20GHz |
Minimum Operating Temperature | -65°C |
Maximum Operating Temperature | 125°C |
Series | SMA |
Contact Material | Beryllium Copper |
Contact Plating | Gold |
