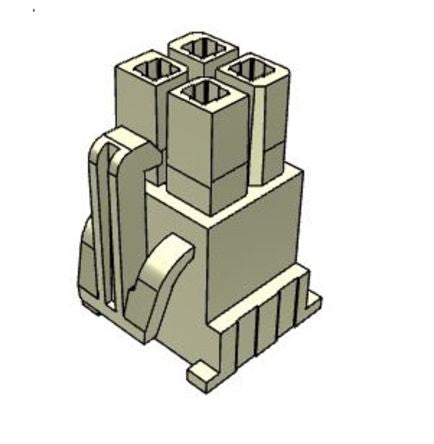

IPBD-02-D - Samtec Male Crimp Connector Housing - IPBD, 4.19mm Pitch, 4 Way, 2 Row [IPBD-02-D]; 158-6105
by Samtec
0₫
Mã kho: 1586105
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 4 |
Number of Rows | 2 |
Pitch | 4.19mm |
Gender | Male |
Mounting Type | Cable Mount |
Series | IPBD |
For Use With | FFC Connectors, IDC Connectors, IPBS Connectors, IPBT Connectors |
Body Orientation | Straight |
Length | 9.398mm |
Width | 12.36mm |
Housing Material | PBT |
