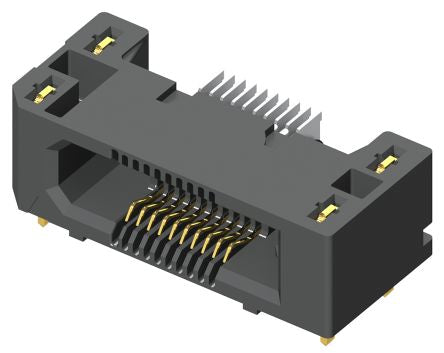

Samtec ERF5 Series 0.5mm Pitch 80 Way 2 Row Vertical PCB Socket, Surface Mount, Solder Termination [ERF5-040-05.0-L-DV-K-TR]; 123-6991
by Samtec
0₫
Mã kho: 1236991
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 80 |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Type | Board to Board |
| Mounting Type | Surface Mount |
| Body Orientation | Vertical |
| Termination Method | Solder |
| Current Rating | 1.5 (Per Pin DV → DV) A, 1.6 (Per Pin DV → RA) A |
| Voltage Rating | 194 V ac |
| Series | ERF5 |
| Contact Material | Beryllium Copper |
