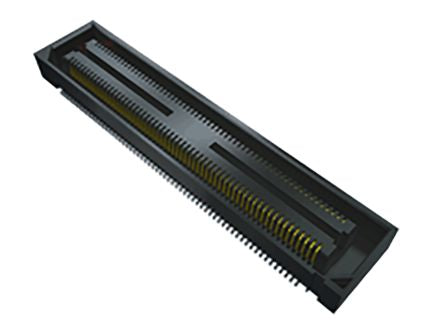

Samtec BSH Series 0.5mm Pitch 60 Way 2 Row PCB Socket, Surface Mount, Solder Termination [BSH-030-01-L-D-A]; 179-9093
by Samtec
0₫
Mã kho: 1799093
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 60 |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Type | Board to Board |
| Mounting Type | Surface Mount |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Stacking Height | 5mm |
| Current Rating | 2 (per Contact)A |
| Voltage Rating | 175 V ac |
| Series | BSH |
| Contact Material | Phosphor Bronze |
