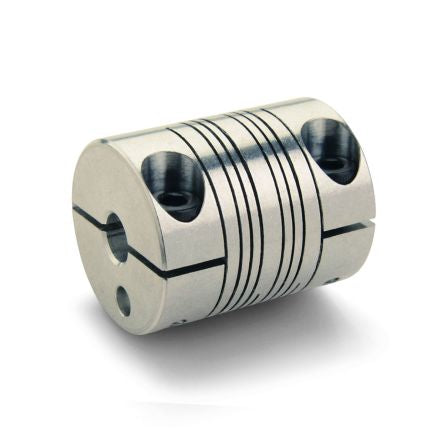

Beam Coupling, Four Beams, Bores 12mmx12 [PCMR32-12-12-A]; 186-4131
by Ruland
0₫
Mã kho: 1864131
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bore | 12mm |
| Outside Diameter | 31.8mm |
| Length | 38.1mm |
| Fastening Type | Clamping |
| Torsional Stiffness | 1.10°/Nm |
| Moment of Inertia | 9.948 x 10^-6kg/m² |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.38mm |
| Misalignment - Axial | 0.25mm |
| Bellows Material | Aluminium |
