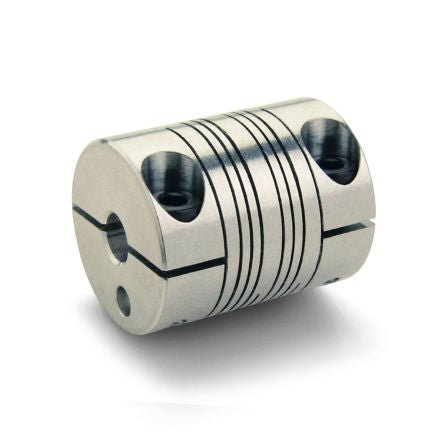

Beam Coupling, Four Beams, Bores 3mmx3mm [PCMR10-3-3-A]; 186-4127
by Ruland
0₫
Mã kho: 1864127
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bore | 3mm |
| Outside Diameter | 9.5mm |
| Length | 14.3mm |
| Fastening Type | Clamping |
| Torsional Stiffness | 11.83°/Nm |
| Moment of Inertia | 0.029 x 10^-6kg/m² |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.2mm |
| Misalignment - Axial | 0.13mm |
| Bellows Material | Aluminium |
