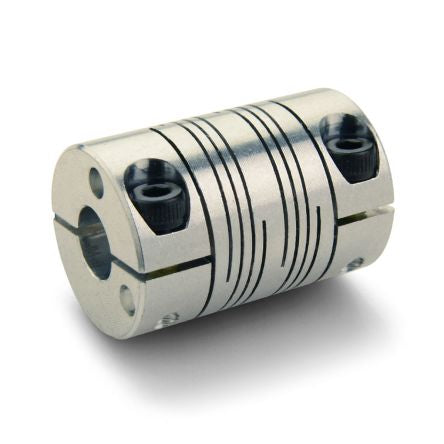

Beam Coupling, Six Beams, Bores 16mmx10m [FCMR38-16-10-A]; 186-4117
by Ruland
0₫
Mã kho: 1864117
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bore | 10 (B2) mm, 16 (B1) mm |
| Outside Diameter | 38.1mm |
| Length | 57.2mm |
| Fastening Type | Clamping |
| Torsional Stiffness | 0.39°/Nm |
| Moment of Inertia | 30.032 x 10^-6kg/m² |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.76mm |
| Misalignment - Axial | 0.38mm |
| Bellows Material | Aluminium |
