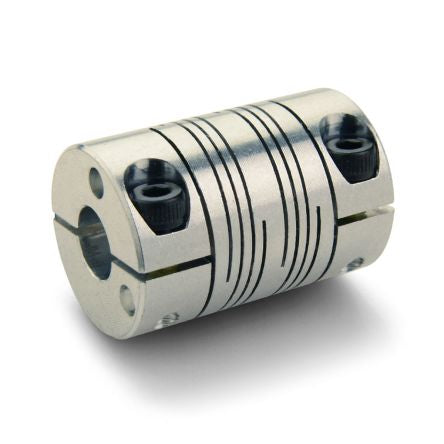

Beam Coupling, Six Beams, Bores 6mmx5mm, [FCMR16-6-5-A]; 186-4097
by Ruland
0₫
Mã kho: 1864097
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bore | 5 (B2) mm, 6 (B1) mm |
| Outside Diameter | 15.9mm |
| Length | 25.4mm |
| Fastening Type | Clamping |
| Torsional Stiffness | 3.21°/Nm |
| Moment of Inertia | 0.380 x 10^-6kg/m² |
| Misalignment - Angular | 3° |
| Misalignment - Parallel | 0.2mm |
| Misalignment - Axial | 0.13mm |
| Bellows Material | Aluminium |
