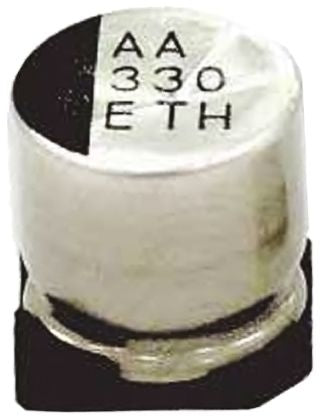

Rubycon 100μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 10 x 10.5mm +125°C 10mm [50THV100M10X10.5]; 172-8028
by Rubycon
0₫
Mã kho: 1728028
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 x 10.5mm |
| Height | 10.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 3000h |
| Series | THV |
| Tolerance | ±20% |
| Polarised | Polar |
| Leakage Current | 0.01 CV/3 μA (After 2 min) |
| Equivalent Series Resistance | 250mΩ |
| Ripple Current | 350mArms |
