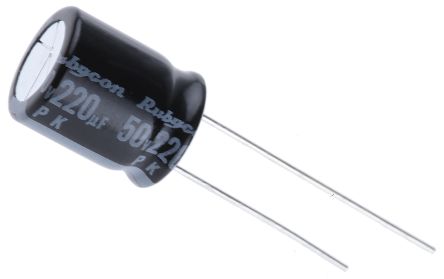

Rubycon 220μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 12.5mm +85°C 10mm 5mm [50PK220MEFC10X12.5]; 172-7987
by Rubycon
0₫
Mã kho: 1727987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 220 µF |
Voltage | 50 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 (Dia.) x 12.5mm |
Height | 12.5mm |
Minimum Operating Temperature | -40°C |
Diameter | 10mm |
Maximum Operating Temperature | +85°C |
Lead Pitch | 5mm |
Lifetime | 2000h |
Series | PK |
Ripple Current | 435mArms |
Leakage Current | 0.01 CV or 3 μA (After 2 min) |
Tolerance | ±20% |
