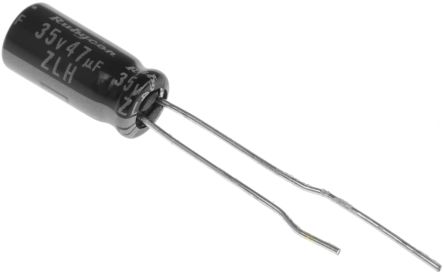

Rubycon 47μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 5 (Dia.) x 11mm +105°C 5mm 7.5mm [35ZLH47MEFCT5X11]; 703-7532
by Rubycon
0₫
Mã kho: 7037532
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 5 (Dia.) x 11mm |
| Height | 11mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 10000h |
| Series | ZLH |
| Ripple Current | 345mA |
| Leakage Current | 0.01 CV or 3 μA |
| Tolerance | ±20% |
