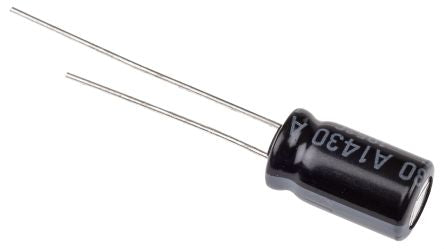

Rubycon 47μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 (Dia.) x 11mm +105°C 6.3mm 2.5mm [35YXF47M6.3X11]; 224-4268
by Rubycon
0₫
Mã kho: 2244268
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 47 µF |
Voltage | 35 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 6.3 (Dia.) x 11mm |
Height | 11mm |
Minimum Operating Temperature | -40°C |
Diameter | 6.3mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 2.5mm |
Lifetime | 5000h |
Series | YXF |
Ripple Current | 250mA |
Tolerance | ±20% |
Leakage Current | 3 μA |
