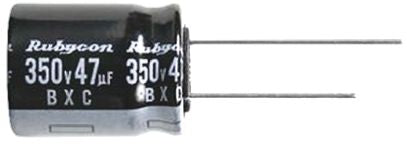

Rubycon 47μF 350V dc Aluminium Electrolytic Capacitor, Through Hole 16 (Dia.) x 20mm +105°C 16mm 7.5mm [350BXC47MEFC16X20]; 749-7341
by Rubycon
0₫
Mã kho: 7497341
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 350 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 16 (Dia.) x 20mm |
| Height | 20mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 12000h |
| Series | BXC |
| Leakage Current | 0.02 CV + 25 (CV > 1000) μA, 0.03 CV + 15 (CV <= 1000) μA, 0.04 CV + 100 (CV > 1000) μA, 0.1 CV + 40 (CV <= 1000) μA |
| Tolerance | ±20% |
| Ripple Current | 1.08A |
