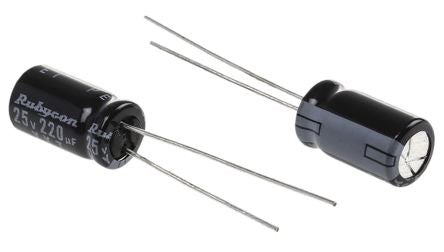

Rubycon 220μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 (Dia.) x 11mm +105°C 6.3mm 2.5mm [25YXJ220M6.3X11]; 172-7455
by Rubycon
0₫
Mã kho: 1727455
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 25 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 11mm |
| Height | 11mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 2.5mm |
| Lifetime | 7000h |
| Series | YXJ |
| Ripple Current | 400mA |
| Tolerance | ±20% |
| Leakage Current | 0.01 CV or 3 μA |
