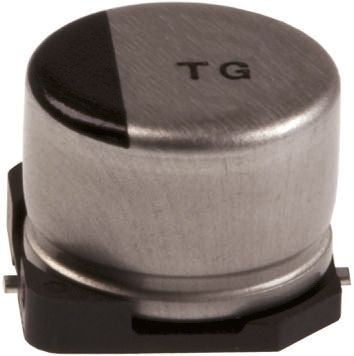

Rubycon 100μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.5mm +105°C 8mm 3.1mm [25SGV100M8X10.5]; 704-3644
by Rubycon
0₫
Mã kho: 7043644
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 10.5mm |
| Height | 10.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.1mm |
| Lifetime | 2000h |
| Series | SVG |
| Tolerance | ±20% |
| Leakage Current | 0.01 CV or 3 μA |
| Ripple Current | 180mA |
| Polarised | Polar |
