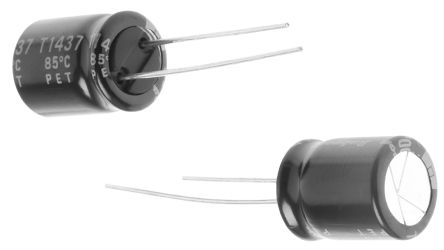

Rubycon 1000μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 12.5mm +85°C 10mm 5mm [16PK1000MEFC10X12.5]; 172-6204
by Rubycon
0₫
Mã kho: 1726204
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1000 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 12.5mm |
| Height | 12.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Lead Pitch | 5mm |
| Series | PK |
| Leakage Current | 0.01 CV or 3 μA (After 2 min) |
| Tolerance | ±20% |
| Ripple Current | 720mArms |
