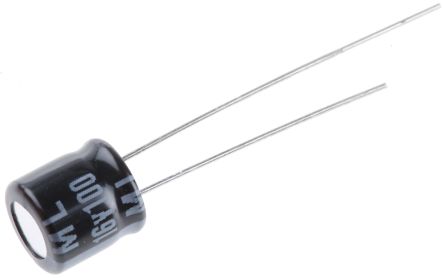

Rubycon 100μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 (Dia.) x 7mm +105°C 6.3mm 2.5mm [16ML100MEFC6.3X7]; 704-7813
by Rubycon
0₫
Mã kho: 7047813
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 7mm |
| Height | 7mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Lead Pitch | 2.5mm |
| Series | ML |
| Leakage Current | 0.01 CV or 3 μA |
| Ripple Current | 95mA |
| Tolerance | ±20% |
