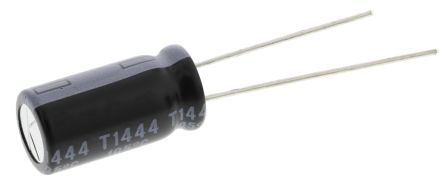

Rubycon 1000μF 10V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 16mm +105°C 8mm 3.5mm [10ZLH1000MEFC8X16]; 172-7980
by Rubycon
0₫
Mã kho: 1727980
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1000 µF |
| Voltage | 10 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 16mm |
| Height | 16mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 8000h |
| Lead Pitch | 3.5mm |
| Series | ZLH |
| Tolerance | ±20% |
| Leakage Current | 0.01 CV or 3 μA |
| Ripple Current | 1.25A |
