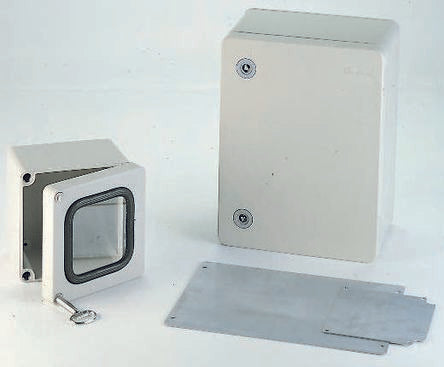

Rose Mini Polyglas, Polyester Wall Box, IP65, 200mm x 400 mm x 300 mm [21304003]; 507-602
by Rose
0₫
Mã kho: 507602
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| External Height | 400 mm |
| External Width | 300 mm |
| External Depth | 200mm |
| Body Material | Polyester |
| Transparent Door | No |
| IP Rating | IP65 |
| Chassis Plate | No |
| Door Lock Type | Door Lock Not Supplied |
| Gland Plate | No |
| Colour | Grey |
| RAL Code | RAL 7038 |
| Series | Mini Polyglas |
| Fixing Kit | No |
| Standards Met | IEC 60243-1 |
| External Mounting Type | Bracket |
| For Protection Of | Distribution panels, Extensions of electronics for measuring and weather stations, Operating control and monitoring system extensions |
| Special Features | Hidden External Hinge, Polycase version with integrated handle, Standard version or with window |
| Internal Mounting Type | Mounting Bosses |
| Application | Aggressive fluids, Indoor, Outdoor |
