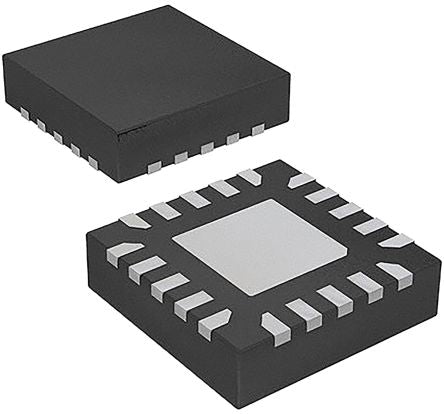

ROHM BD9134MUV-E2, Buck DC-DC Converter, Adjustable, 3.25 → 3.35 V 20-Pin, VQFN [BD9134MUV-E2]; 128-8881
by ROHM
0₫
Mã kho: 1288881
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Minimum Output Voltage | 3.25 V |
| Maximum Output Voltage | 3.35 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 5.5 V |
| Maximum Output Current | 3A |
| Converter Type | Buck |
| Number of Outputs | 1 |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Package Type | VQFN |
| Pin Count | 20 |
| Maximum Operating Temperature | +105 °C |
| Minimum Operating Temperature | -40 °C |
| Height | 0.98mm |
| Length | 4mm |
| Maximum Switching Frequency | 1.2 MHz |
| Dimensions | 4 x 4 x 0.98mm |
| Width | 4mm |
| Switching Regulator | Yes |
