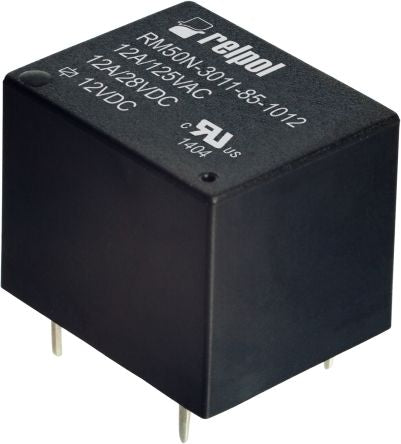

Relpol Non-Latching Relay PCB Mount, 12V dc Coil, 12 A Non-Latching Relay [RM50N-3011-85-1012]; 134-8404
by Relpol
0₫
Mã kho: 1348404
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coil Voltage | 12 V dc |
| Coil Power | 360mW |
| Coil Resistance | 400 Ω |
| Isolation Coil To Contact | 1.5kV ac |
| Mounting Type | PCB Mount |
| Switching Current | 12A |
| Terminal Type | PCB Pin |
| Number of Poles | 1 |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Voltage DC | 110V |
| Height | 15.3mm |
| Length | 19.5mm |
| Depth | 15.6mm |
| Maximum Switching Power DC | 250 W |
| Maximum Switching Power AC | 1.5 kVA |
