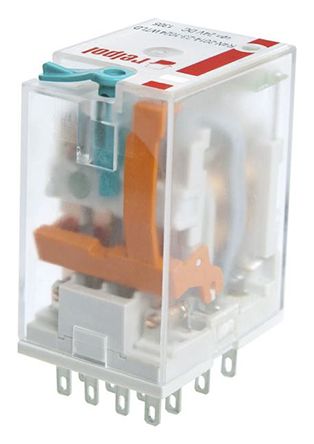

![Relpol R4N-2014-23-5024-WTL 1232077](http://nguyenxuong.com/cdn/shop/products/W1232077-01_314x444.jpg?v=1594206954)
Relpol 4PDT Non-Latching Relay Plug In, 24V ac Coil, 6 A General Purpose Relay [R4N-2014-23-5024-WTL]; 123-2077
by Relpol
0₫
Mã kho: 1232077
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Coil Voltage | 24 V ac |
Coil Power | 1.6W |
Coil Resistance | 158 Ω |
Isolation Coil To Contact | 2.5kV ac |
Contact Configuration | 4PDT |
Mounting Type | Plug In |
Switching Current | 6A |
Terminal Type | Plug In |
Number of Poles | 4 |
Maximum Switching Voltage AC | 250V |
Maximum Switching Voltage DC | 24V |
Maximum Switching Power AC | 1.5 kVA |
Length | 27.4mm |
Height | 35.5mm |
Series | R4N |
Standards Met | CE, CSA, CULus, EAC, LR, VDE |
Depth | 21mm |
