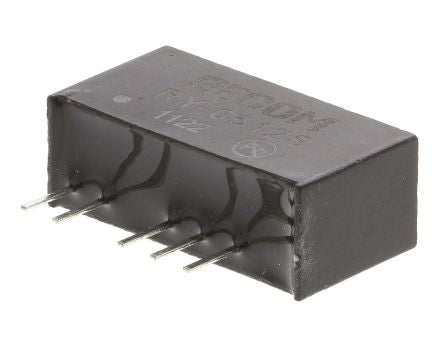

Recom RY 1W Isolated DC-DC Converter Through Hole, Voltage in 4.75 → 5.25 V dc, Voltage out 12V dc [RY-0512S]; 166-9126
by Recom
0₫
Mã kho: 1669126
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 4.75 → 5.25 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 1kV dc |
| Power Rating | 1W |
| Output Current | 84mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.66 |
| Package | SIP |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +70°C |
| Series | RY |
| Depth | 10.2mm |
| Length | 19.65mm |
