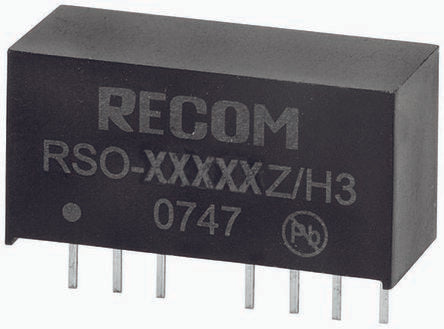

Recom RSO 1W Isolated DC-DC Converter Through Hole, Voltage in 18 → 72 V dc, Voltage out ±12V dc Medical Approved [RSO-4812DZ/H3]; 417-196
by Recom
0₫
Mã kho: 417196
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | ±12V dc |
| Input Voltage Range | 18 → 72 V dc |
| Input Voltage Nominal | 48 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 1W |
| Output Current | ±42mA |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Medical Approved | Yes |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
| Depth | 11.1mm |
| Length | 21.8mm |
| Series | RSO |
