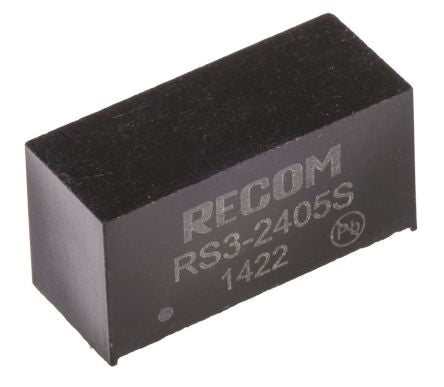

Recom RS3 3W Isolated DC-DC Converter Through Hole, Voltage in 18 → 36 V dc, Voltage out 5V dc [RS3-2405S]; 163-760
by Recom
0₫
Mã kho: 163760
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 18 → 36 V dc |
| Input Voltage Nominal | 24 V dc |
| Isolation Voltage | 500V ac |
| Power Rating | 3W |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package | SIP |
| Minimum Temperature | -40°C |
| Maximum Temperature | +71°C |
| Depth | 11.1mm |
| Series | RS3 |
| Length | 21.8mm |
