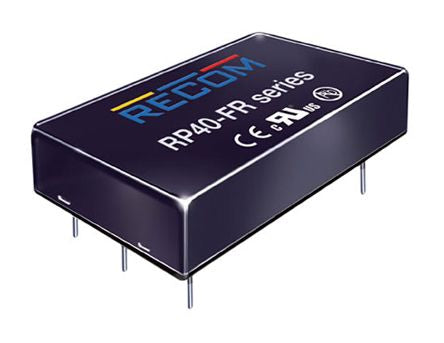

Recom RP40-FR 40W Isolated DC-DC Converter Through Hole, Voltage in 43 → 160 V dc, Voltage out 3.3V dc Railway [RP40-1103.3SFR/P]; 124-2113
by Recom
0₫
Mã kho: 1242113
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 3.3V dc |
| Output Voltage Adjustment Range | -10 → +10% |
| Input Voltage Range | 43 → 160 V dc |
| Input Voltage Nominal | 110 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 40W |
| Output Current | 10A |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Medical Approved | No |
| Railway Approved | Yes |
| Load Regulation | ±0.5% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +60°C |
| Depth | 10.2mm |
| Width | 25.4mm |
| Series | RP40-FR |
| Standards Met | CE, Class A, Class A or B, CURus E196683, EN 50121-3-2, EN 50155, EN 55011, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, REACH, UL 60950-1 |
| Length | 50.8mm |
