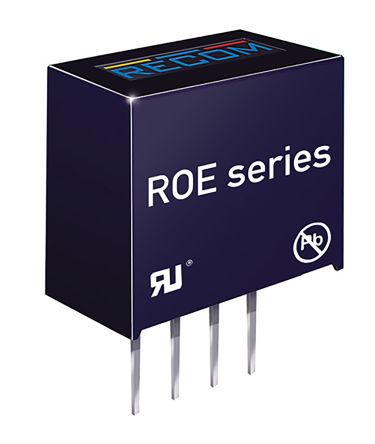

Recom ROE 1W Isolated DC-DC Converter Through Hole, Voltage out 15V dc [ROE-0515S]; 139-2797
by Recom
0₫
Mã kho: 1392797
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Input Voltage Nominal | 5 V dc |
| Isolation Voltage | 1kV dc |
| Power Rating | 1W |
| Output Current | 66mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.8 |
| Package | SIP 4 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.15 |
| Maximum Temperature | +85°C |
| Standards Met | CSA C22.2 No. 60950-1-07, CULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition |
| Length | 11.5mm |
| Series | ROE |
| Width | 6mm |
| Depth | 10mm |
