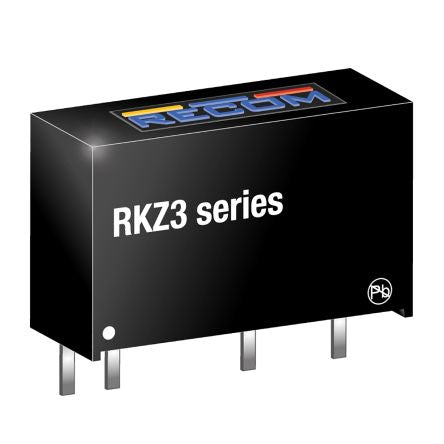

Recom RKZ3 3W Isolated DC-DC Converter Through Hole, Voltage in 10.8 → 13.2 V dc, Voltage out 5V dc [RKZ3-1205S]; 165-4983
by Recom
0₫
Mã kho: 1654983
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 10.8 → 13.2 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 3kV dc |
| Power Rating | 3W |
| Output Current | 600mA |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Efficiency | 0.84 |
| Package | SIP7 |
| Minimum Temperature | -40°C |
| Load Regulation | 0.1 |
| Maximum Temperature | +90°C |
| Standards Met | IEC/EN 62368-1 |
| Width | 7.5mm |
| Series | RKZ3 |
| Depth | 12.2mm |
| Length | 19.6mm |
